// Goods Cum Passenger Lift //

IFD Door
Goods Cum Psngr

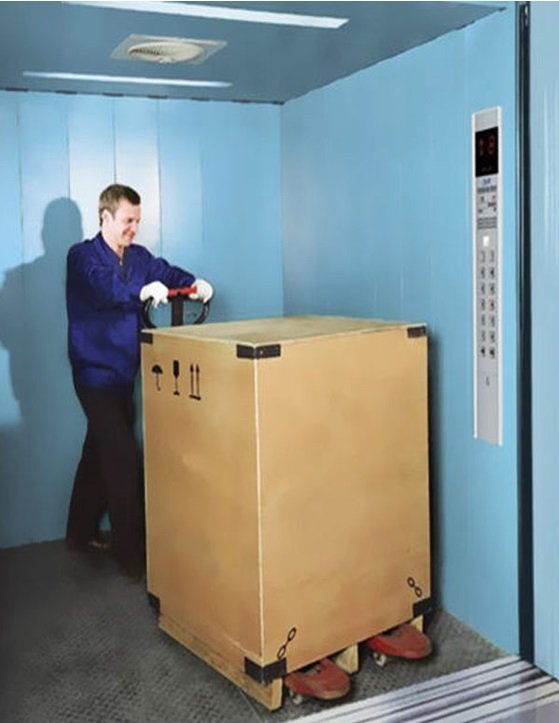

Loading & Unloading
Goods Cum Psngr

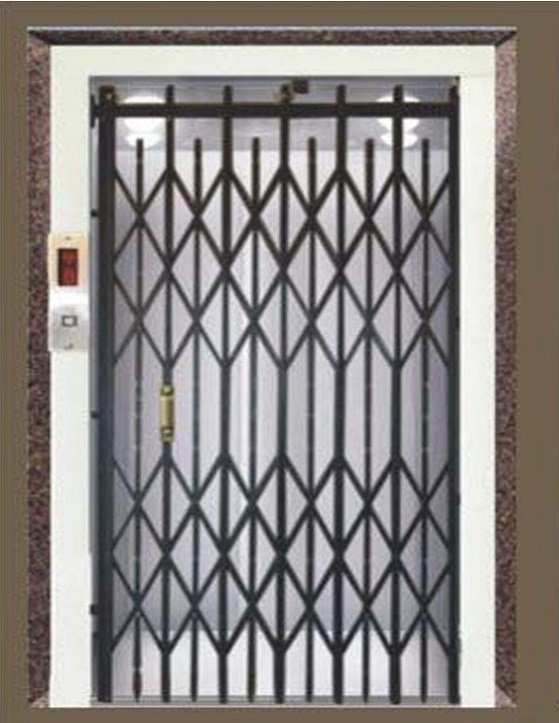

Collapsible Door
Goods Cum Psngr

What is Goods Cum Passenger Lift

Goods cum passenger lifts are designed to be more efficient and flexible than traditional passenger or goods lifts, which are designed for specific tasks. They have larger cars, higher weight capacities, and are built to be robust. They also have additional safety features to accommodate the presence of passengers. It's a flexible solution that can be used in a variety of settings, including commercial buildings, industrial facilities, retail environments, and residential complexes.

// Goods Cum Passenger Lift Equipment's //

Goods Motor is a direct-drive permanent magnet alternating current (AC) motor that is attached directly to the wheel of an elevator.

Gearless elevator motors can be smaller than geared elevator motors because they do not have gears. The gearless motors can be smaller than 1⁄2 of the geared motor. This makes the gearless motors more effective when it comes to the use of electricity. By making the engine smaller, the other parts would also be smaller.

Panel is supports open-loop low-speed running, direct parallel control of elevators.

MRL control panel is a control panel designed for use with machine room-less (MRL) elevators. MRL elevators are elevators that don't require a separate machine room because the machinery is integrated into the hoistway. MRL control panels are ideal for buildings with limited space.

LOP/COP are acronyms for Landing Operating Panel and Car Operating Panel, respectively, and are used in elevators to control landing and car calls.

Elevators can also have touch LOP/COP interfaces, which use touch-sensitive screens or panels instead of physical buttons. Touch LOP/COP interfaces can be more user-friendly and intuitive than traditional button panels, but they may require regular maintenance.

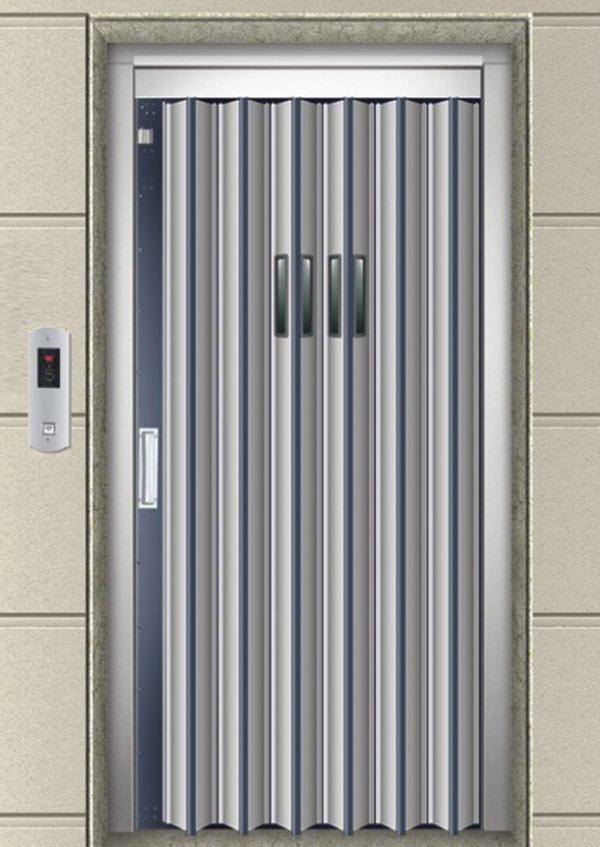

IFD Door is a door for elevators that combines safety features, operational efficiency, and a stylish design.

IFD doors use an IFD system to optimize door opening and closing times based on passenger traffic. This reduces waiting times and improves the overall performance of the elevator.

// Goods Cum Passenger Lift Features //

Advanced Technology
A Powerful Hoisting Machine
Easy Loading & Unloading
Optimized Use of space
Wide Doors
Safe, Reliable & Durable

Goods Cum Passenger Lift Chart

Load Car-Inside Lift Well Entrance Over Head Room Speed Mps Pit Depth Head Room
500 1100 X 1200 1900 X 1600 1100 2500 X 4100 0.25 to 1.0 Mps 1500 4800
1000 1400 X 1800 2300 X 2200 1400 2500 X 4700 0.25 to 1.0 Mps 1500 4800
1500 1700 X 2000 2600 X 2400 1700 2600 X 4900 0.25 to 1.0 Mps 1500 4800
2000 1700 X 2500 2600 X 2900 1700 2600 X 5400 0.25 to 1.0 Mps 1500 4800
2500 2000 X 2500 2900 X 2900 2000 2900 X 5400 0.25 to 1.0 Mps 1500 4800
3000 2000 X 3000 2900 X 3400 2000 2900 X 5900 0.25 to 1.0 Mps 1500 4800
