// Hospital Lift //

Stretcher Lift
MR/MRL

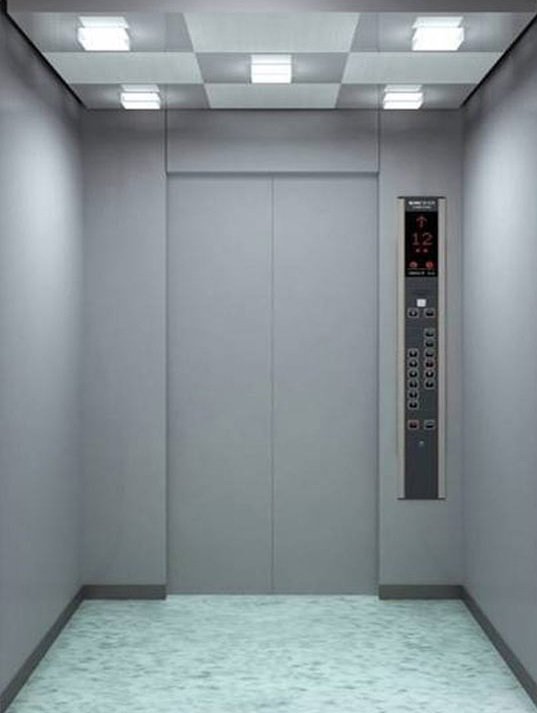

SS 304 Cabin
MR/MRL

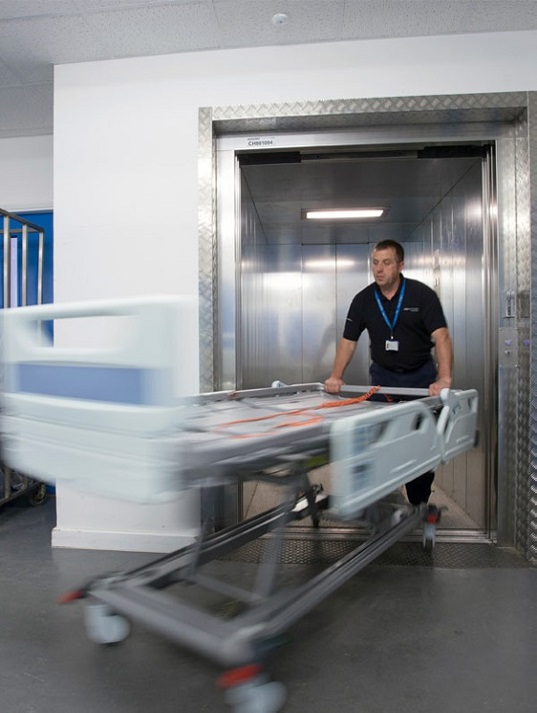

Moving Patients
MR/MRL

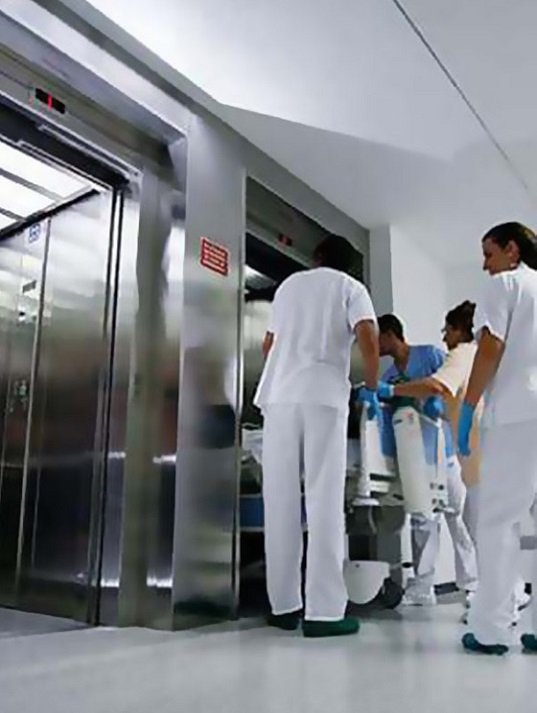

What is Hospital Lift

A hospital lift is a vertical lift that transports patients, equipment, and materials between floors in hospitals, clinics, and other medical facilities. Hospital lifts are also known as bed lifts, patient lifts, or bed hoists. Hospital lifts are designed to be sturdy, resistant to corrosion and wear, and easy to maintain. They are often equipped with center opening telescopic power operated doors for easy use by patients. Hospital lifts can come in different sizes to meet the needs of the facility. For example, busy, high-rise buildings may need large, high-speed lifts, while calmer wards in low-to-medium-rise buildings may not have the same needs. In addition to hospital lifts, many medical facilities also need additional lifting equipment like patient lifts. Patient lifts are assistive devices that help patients move between a bed and a chair or other resting places. They can be sling lifts or sit-to-stand lifts, and can be operated electrically.

// Hospital Lift Equipment's //

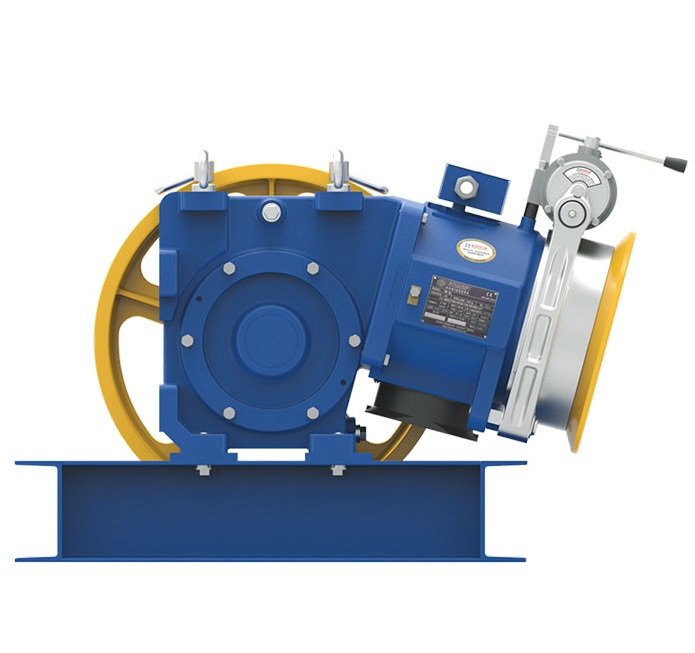

Geared Motor is a gearbox attached to an elevator's electric motor that turns a wheel to move a rope.

Geared elevators are energy efficient and are often used in mid-rise buildings up to 300 feet tall. They can reach speeds of up to 500 feet per minute. The main difference between geared and gearless elevators is the location of the wheel: Geared elevators: The wheel is located in the machine room, which is above the elevator shaft. Gearless elevators: The wheel is located above the cabin and moves with the cabin.

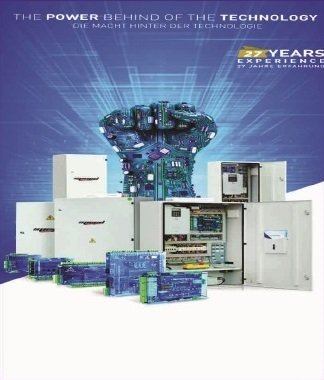

Control Panel is provides the necessary energy and can be controlled at any time to ensure the normal operation of the machine.

The elevator machine room control panel is the part of an elevator that manages the elevator's movement and ensures safe travel. It's located in the machine room, which is the control house of the elevator. The control panel is responsible for many functions, including: Car calls: Registering and canceling car calls Door control: Controlling the elevator doors Speed: Controlling the elevator's speed Power supply: Managing the elevator's power supply units Safety: Ensuring the safety of passengers.

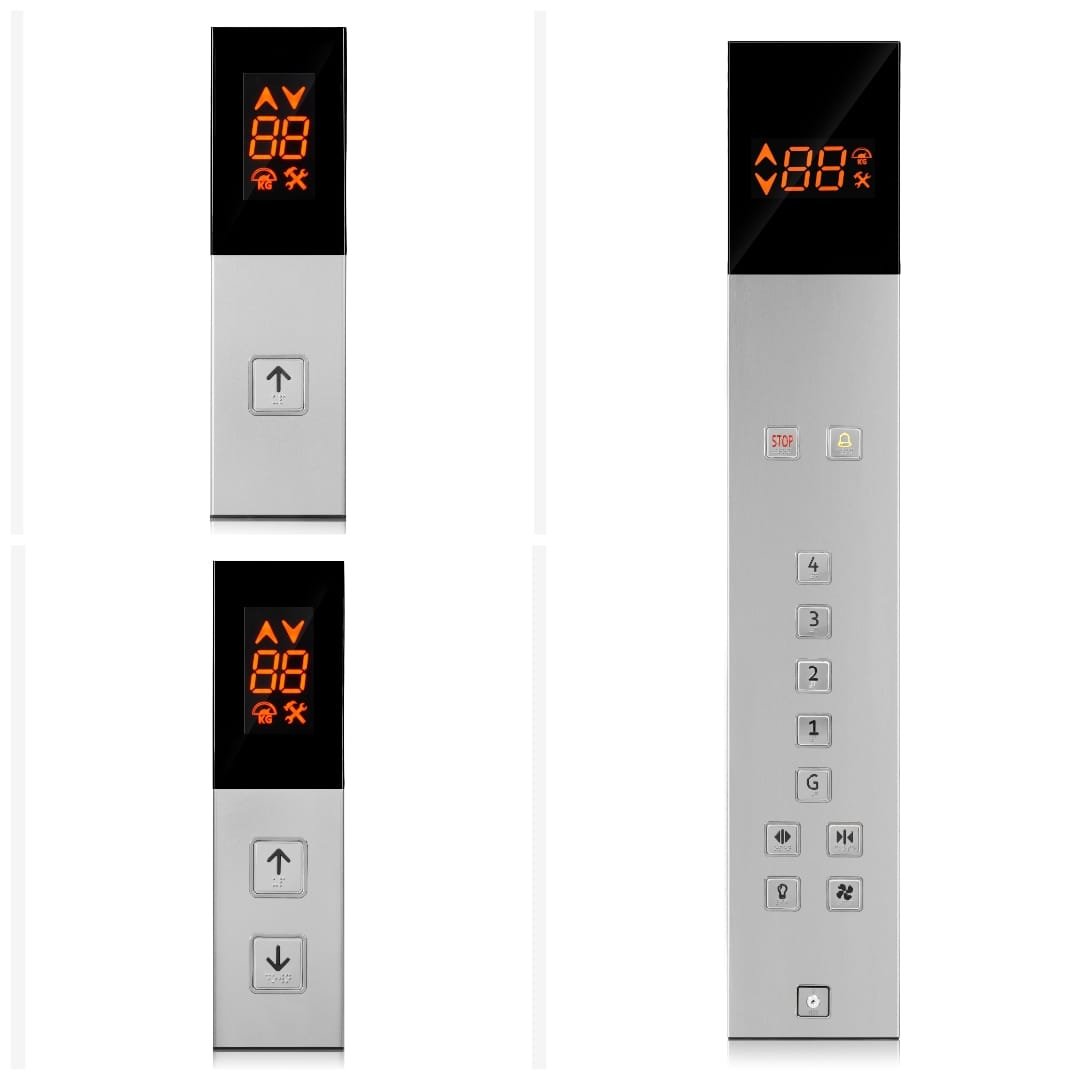

LOP/COP are acronyms for Landing Operating Panel and Car Operating Panel, respectively, and are used in elevators to control landing and car calls.

Elevators can also have touch LOP/COP interfaces, which use touch-sensitive screens or panels instead of physical buttons. Touch LOP/COP interfaces can be more user-friendly and intuitive than traditional button panels, but they may require regular maintenance.

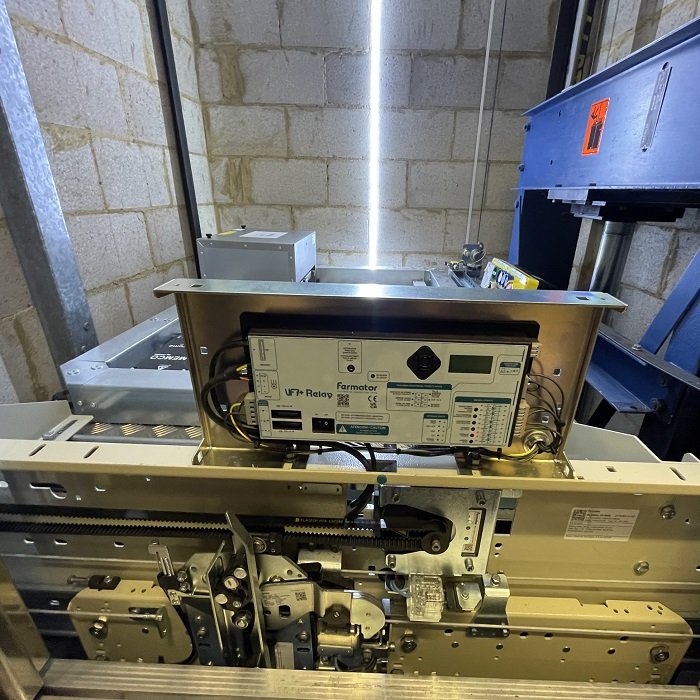

Door Header is a metal beam that supports the weight of the elevator doors and helps them open and close smoothly.

Structural or formed hot rolled steel angle above opening in cab which the car door hanger and track are attached. Door Header formed steel which runs horizontally across the hatchway above the entrance to which the door hanger and track are attached.

// Hospital Lift Features //

Comfort
Emergency Rescue
Energy Efficient
Brilliant Speed
Seamless Operation
Safe, Reliable & Durability

Hospital Lift Chart

Persons Load Car-Inside Lift Well Entrance machine Room Speed Mps Pit Depth Head Room
15 1020 950 X 2400 1700 X 3000 800 3700 X 5500 Upto 1.5 Mps 1600 4800
20 1360 1300 X 2400 2200 X 3000 1200 4200 X 5500 Upto 1.5 Mps 1500 6700
26 1768 1600 X 2400 2350 X 3000 1200 4350 X 5500 Upto 1.5 Mps 2500 6700
