// Machine Room Less Lift //

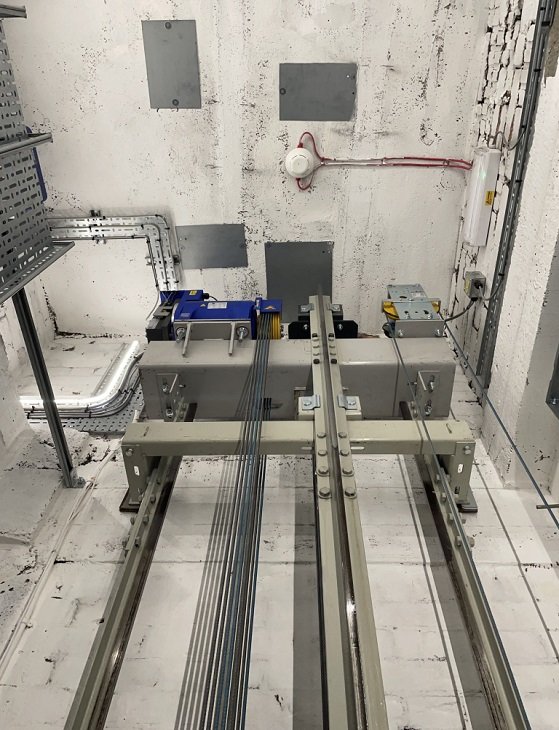

Top View
MRL
3D View
MRL

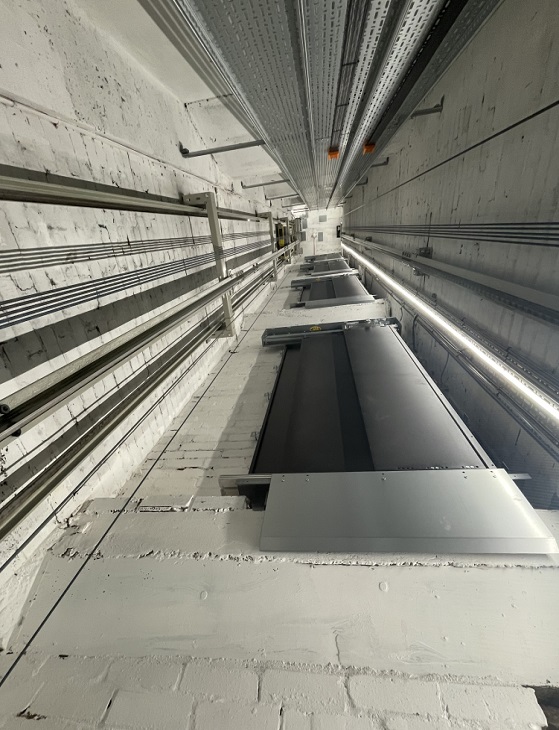

Inside Shaft View
MRLWhat is Machine Room Less Lift (MRL)
A machine room-less (MRL) elevator is an elevator that doesn't have a separate machine room, and instead has a compact traction machine and controller installed in the elevator's hoistway. MRL elevators are a good choice for buildings with limited space, as they save space, are less expensive, and use less electricity than elevators with machine rooms.
// Machine Room Less Lift Equipment's //
Gearless Motor is a direct-drive permanent magnet alternating current (AC) motor that is attached directly to the wheel of an elevator.
Gearless elevator motors can be smaller than geared elevator motors because they do not have gears. The gearless motors can be smaller than 1⁄2 of the geared motor. This makes the gearless motors more effective when it comes to the use of electricity. By making the engine smaller, the other parts would also be smaller.

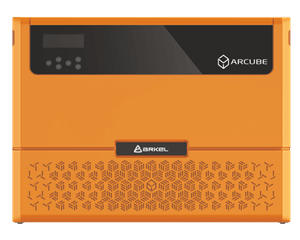

Arkel Arcube Control Panel Combines VVVF drive unit, control board, rescue function and other electrical components in a single monoblock unit
MRL control panel is a control panel designed for use with machine room-less (MRL) elevators. MRL elevators are elevators that don't require a separate machine room because the machinery is integrated into the hoistway. MRL control panels are ideal for buildings with limited space.

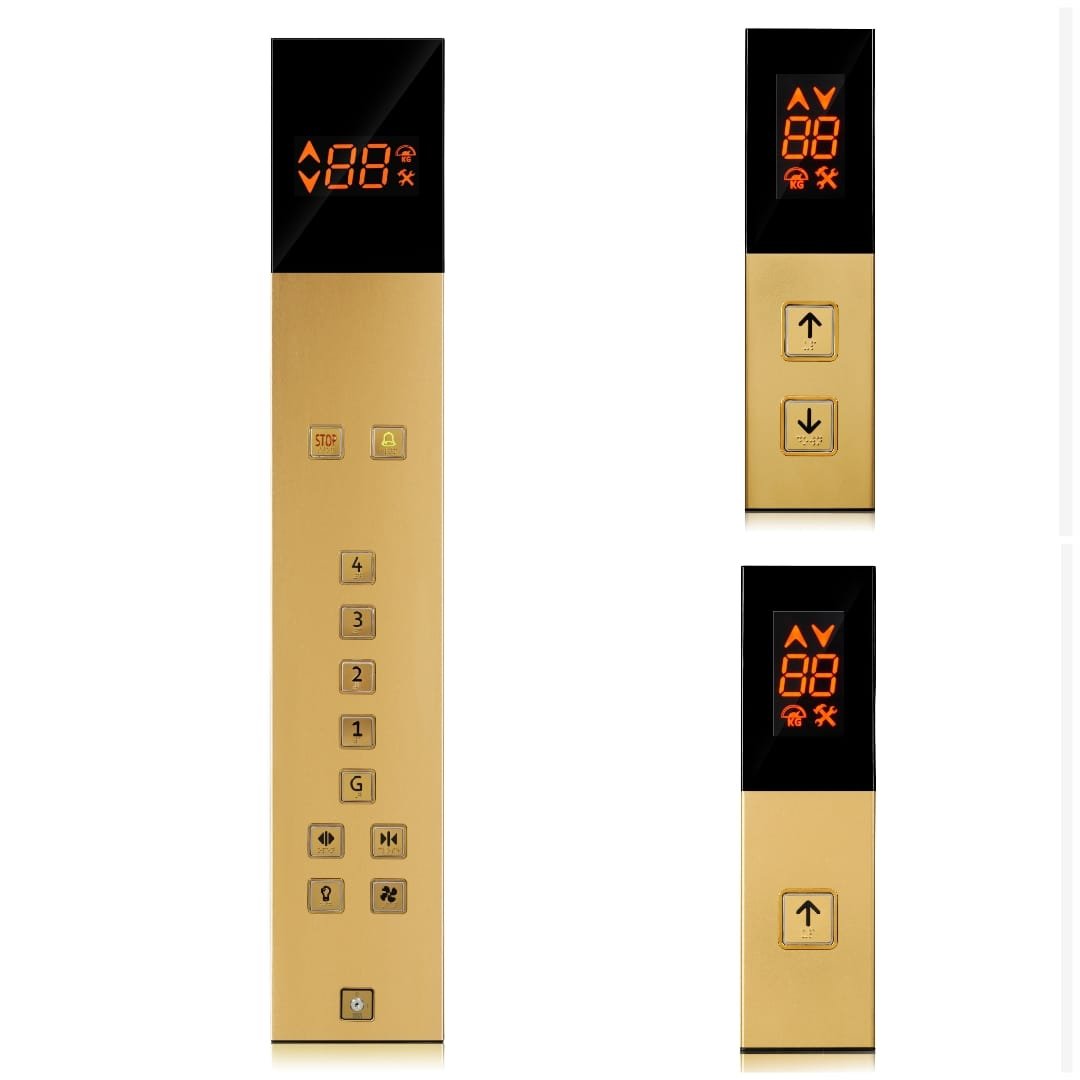

LOP/COP are acronyms for Landing Operating Panel and Car Operating Panel, respectively, and are used in elevators to control landing and car calls.
Elevators can also have touch LOP/COP interfaces, which use touch-sensitive screens or panels instead of physical buttons. Touch LOP/COP interfaces can be more user-friendly and intuitive than traditional button panels, but they may require regular maintenance.
Door Header is a metal beam that supports the weight of the elevator doors and helps them open and close smoothly.
Structural or formed hot rolled steel angle above opening in cab which the car door hanger and track are attached. Door Header formed steel which runs horizontally across the hatchway above the entrance to which the door hanger and track are attached.
// Machine Room Less Lift Features //
Advanced Technology
Emergency Rescue
Energy Efficient
Space Saving
Low Maintenance
Safe & Reliable
Machine Room Less Lift Chart
| Persons | Load | Car-Inside | Lift Well | Entrance | Over Head Room | Speed Mps | Pit Depth |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1000 X 1100 | 1600 X 1550 | 700 | 4800 | 1.0 Mps | 1500 |
| 8 | 544 | 1100 X 1300 | 1850 X 1800 | 800 | 4800 | 1.0 Mps | 1500 |
| 10 | 680 | 1300 X 1350 | 2150 X 1900 | 800 | 4800 | 1.0 Mps | 1500 | 13 | 844 | 1500 X 1500 | 2350 X 2100 | 800 | 4800 | 1.0 Mps | 1500 | 15 | 1020 | 1600 X 1750 | 2450 X 2350 | 900 | 4800 | 1.0 Mps | 1500 |
// Machine Room Lift //

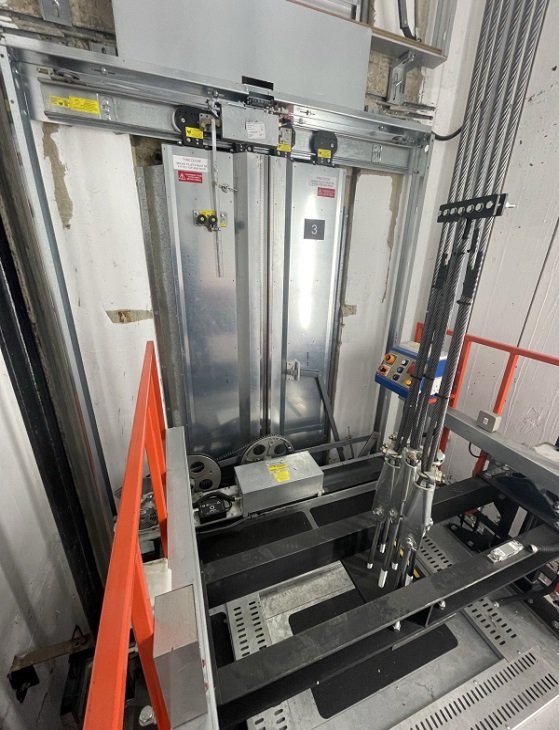

MR Cetnter Ropping
MR

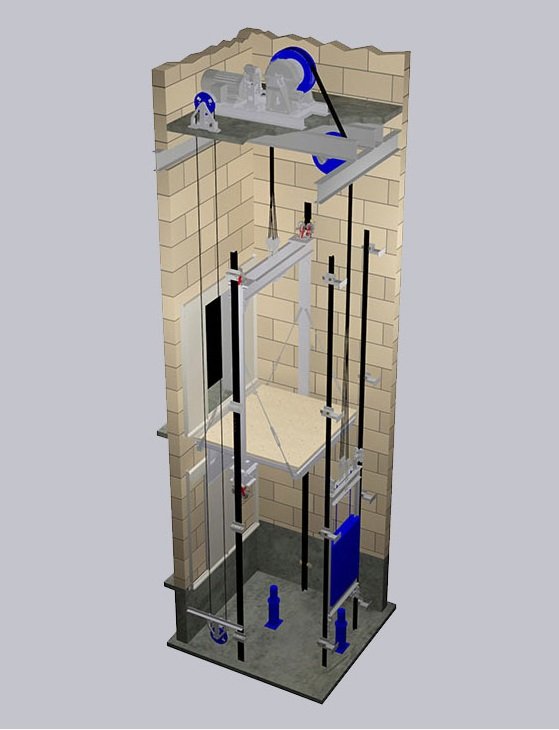

3D View
MR
Machine Room
MRWhat is Machine Room Lift ( MR )
A machine room-less (MRL) elevator is an elevator that doesn't have a separate machine room, and instead has a compact traction machine and controller installed in the elevator's hoistway. MRL elevators are a good choice for buildings with limited space, as they save space, are less expensive, and use less electricity than elevators with machine rooms.
// Machine Room Lift Equipment's //
Geared Motor is a gearbox attached to an elevator's electric motor that turns a wheel to move a rope.
Geared elevators are energy efficient and are often used in mid-rise buildings up to 300 feet tall. They can reach speeds of up to 500 feet per minute. The main difference between geared and gearless elevators is the location of the wheel: Geared elevators: The wheel is located in the machine room, which is above the elevator shaft. Gearless elevators: The wheel is located above the cabin and moves with the cabin.
MR Control Panel is provides the necessary energy and can be controlled at any time to ensure the normal operation of the machine.
The elevator machine room control panel is the part of an elevator that manages the elevator's movement and ensures safe travel. It's located in the machine room, which is the control house of the elevator. The control panel is responsible for many functions, including: Car calls: Registering and canceling car calls Door control: Controlling the elevator doors Speed: Controlling the elevator's speed Power supply: Managing the elevator's power supply units Safety: Ensuring the safety of passengers.
LOP/COP are acronyms for Landing Operating Panel and Car Operating Panel, respectively, and are used in elevators to control landing and car calls.
Elevators can also have touch LOP/COP interfaces, which use touch-sensitive screens or panels instead of physical buttons. Touch LOP/COP interfaces can be more user-friendly and intuitive than traditional button panels, but they may require regular maintenance.
Door Header is a metal beam that supports the weight of the elevator doors and helps them open and close smoothly.
Structural or formed hot rolled steel angle above opening in cab which the car door hanger and track are attached. Door Header formed steel which runs horizontally across the hatchway above the entrance to which the door hanger and track are attached.
// Machine Room Lift Features //
Lower Cost
Emergency Rescue
Energy Efficient
Load Capacity
Low Maintenance
Safe & Reliable
Machine Room Lift Chart
| Persons | Load | Car-Inside | Lift Well | Entrance | Machine Room | Speed Mps | Pit Depth |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1150 X 960 | 1600 X 1525 | 700 | 1600 X 3500 | 1.0 Mps | 1500 |
| 8 | 544 | 1300 X 1100 | 1800 X 1800 | 800 | 2250 X 4100 | 1.0 Mps | 1500 |
| 10 | 680 | 1350 X 1300 | 1800 X 2000 | 800 | 3300 X 4500 | 1.0 Mps | 1500 |
| 13 | 844 | 2000 X 1100 | 2500 X 1900 | 900 | 4000 X 4400 | 1.0 Mps | 1500 |
| 16 | 1080 | 2000 X 1300 | 2500 X 2100 | 1000 | 4000 X 4600 | 1.0 Mps | 1500 |
| 20 | 1360 | 2000 X 1550 | 2500 X 2400 | 1000 | 4000 X 4900 | 1.0 Mps | 1500 |
